Chapter 8: Memory Management

• Registers and Main Memory are the only storage directly accessible to the CPU
• Collection of processes are loaded into memory and be executed
• Multiple processes are brought into memory and run concurrently
• A process may be moved between memory and disk during its execution

Multistep Processing of a Program

• compile time: translate source code to machine code
• load time: link the program and load it into memory
• execution time: run the program

Address Binding Timing

• Compile Time
  • compiler translates symbolic code into absolute code
  • if starting location changes → recompile
• Load Time
  • compiler translates symbolic code into relocatable code(.BS+0x1234)
  • when loading, translate to physical address(0xABCD)
  • if starting location changes → reload the code
• Execution Time
  • compiler translates symbolic code into logical addresses (virtual-address) code(0x18)
  • even when loading, keep using logical addresses(0x18)
  • special hardware, Memory Management Unit (MMU), is used to map logical to physical addresses
  • even CPU don't know the physical address, only use logical address

Memory-Management Unit (MMU)

• a routine is loaded into memory only when it is called, (not in load time)
  • unused routines are never loaded
  • better memory space utilization
  • required implemented through program design (no special support from OS):
    C

    #include <dlfcn.h>
    int main() {
        double (*cosine)(double);
        void* handle = dlopen ("/lib/libm.so.6", RTLD_LAZY);
        cosine = dlsym(handle, "cos");
        printf ("%f\n", (*cosine)(2.0));
        dlclose(handle);
    }


• Static Linking: libraries are combined with object code at load time
  • results in a larger executable file, duplicated code
• Dynamic Linking: linking postponed until execution time
  • only one code copy in memory and shared by everyone
  • need to compile to dynamic link library
  • stub is included in the executable to ask the OS to load the library when needed
  • stub call -> check if library is in memory -> if not, load it -> execute the lib

• a process can be swapped temporarily out of memory to a backing store (disk) and then brought back into memory for continued execution
  • also used by midterm scheduling, not context switching
• Backing Store: a chunk of disk, separated from the file system, to provide direct access to memory images
• Advantages
  • free up memory
  • swap lower-priority processes out with a higher one
• Swap back: if binding is done at compile/load time, swap back must be the same
• A process to be swapped MUST be idle (a process is waiting for IO)
  • solution:
  1. Never swap a process with pending I/O
  2. I/O ops are done through OS buffers (user process can be swapped out, OS does I/O on its behalf), then copy data to/from user process when swapped back
  • I/O device → I/O Controller (own buffer) → OS Buffer → User Process
• Major problem: swap time is too long $\propto$ amount of memory swapped
  • solution: use demand paging instead of swapping entire process

• Fixed-partition allocation
  • each process loads into one partition of fixed size
  • degree of multiprogramming = # of partitions
• Variable-partition allocation
  • Hole: block of contiguous free memory, (scattered in memory)
  • First-fit: find the first hole that fits
  • Best-fit: find the smallest hole that fits
  • Worst-fit: find the largest hole
• Buddy Cell Allocation Algorithm
  • a heuristic algo for best-fit policy
  • split memory into halves recursively until the smallest block that fits is found
  • those two blocks are called "buddies" (same size, contiguous) can be merged later
  • search time: O(log n)
  • merge and split: O(1)
• External Fragmentation
  • total mem space big enough, but not contiguous
  • only occur in variable-partition allocation
  • Solution: compaction
    • shuffle memory contents to place all free memory together in one large block
    • only possible if relocation is dynamic, done at execution time
• Internal Fragmentation
  • allocated memory may be slightly larger than requested memory
  • only occur in fixed-partition allocation

• Divide physical memory into fixed-size blocks called frames
• Divide logical memory into blocks of the same size called pages
• to run a program of size n pages, need to find n free frames and load the program
• Benefits
  • non-contiguous allocation
  • no external fragmentation
  • limited internal fragmentation
  • provide shared memory/page
• Page Table: maps the base of each page (page number) to the base of each frame
  • page table only includes pages owned by a process
  • a process cannot access memory outside its allocated pages (mem protection)
  • page number p: base address of a page
  • frame number f: base address of a frame
• logical address = page number (p) + page offset (d)
  • N bits of p -> can allocate at most $2^N$ pages -> $2^N \times \text{page size}$
  • M bits of d -> $\text{page size} = 2^M$ bytes
• physical address = frame number (f) + page offset (d)
• Address Translation
  • p + d; p --MMU-> f; f + d
  • # of pages: determine the logical memory size of a process
  • # of frames: depending on the size of physical memory
• free frame linked list: maintained by OS
• Page Size: a power of 2, 512 ~ 16MB, typically 4KB
  • too small -> large page table, more pages per process -> more I/O ops for loading pages
  • too large -> internal fragmentation
• Page Table
  • kept in memory
  • PTBR (Page-Table Base Register): the physical address of the page table (used by MMU)
    • store in PCB (Process Control Block) during context switch
  • With PTBR, each memory reference requires 2 memory accesses -> solved by TLB
• TLB (Translation Lookaside Buffer)
  • associative memory: parallel search O(1)
  • limited entries: 64 ~ 2048
  • cached (page number, frame number) pairs when MMU translating addresses
    • TLB hit: get frame number from TLB
    • TLB miss: use original by PTBR (2 memory accesses), then update TLB
  • flush TLB during context switch
• EMAT (Effective Memory Access Time)
  • example: 20ns for TLB lookup + 100ns for memory access
  • 70% TLB hit ratio: $\text{EMAT} = 0.7 \times (20 + 100) + 0.3 \times (20 + 2 \times 100) = 150ns$
  • 98% TLB hit ratio: $\text{EMAT} = 0.98 \times (20 + 100) + 0.02 \times (20 + 2 \times 100) = 122ns$
• Memory Protection: each page is associated with a set of protection bits
  • e.g. valid/invalid bit
    • valid: the page/frame is in the process's logical/physical address space
    • invalid: the page/frame is not in the process's logical/physical address space
  • PTLR (Page-Table Length Register): indicates the size of the page table (used by MMU)
• Shared Pages
  • reentrant code (pure code): never change during execution, can be shared
  • only one copy in physical memory
  • multiple virtual addresses map to the same physical address

Page table would be huge and difficult to be loaded. e.g. 4GB ($2^{32}$) logical memory with 4KB ($2^{12}$) page would have 1 million ($2^{20}$) pages table entries. Three solutions:

Hierarchical Paging

Hashed Page Tables

Inverted Page Tables

• a program = a collection of segments
• a segment = a logical unit e.g. main program, procedure, function, data structure, stack
• logical address = (segment number, offset)
• Segment Table: maps segment number to (base (4B), limit(4B))
  • STBR (Segment-Table Base Register): the physical address of the segment table
  • STLR (Segment-Table Length Register): indicates the size of the segment table
• process:
  1. segment number -> segment table -> get base and limit
  2. check offset < limit?
  3. physical address = base + offset
• shared segments: same logical address in different processes
• Protection & Sharing
  • Read-only segment: code (code shared at segment level)
  • Read-Write segment: data, heap, stack

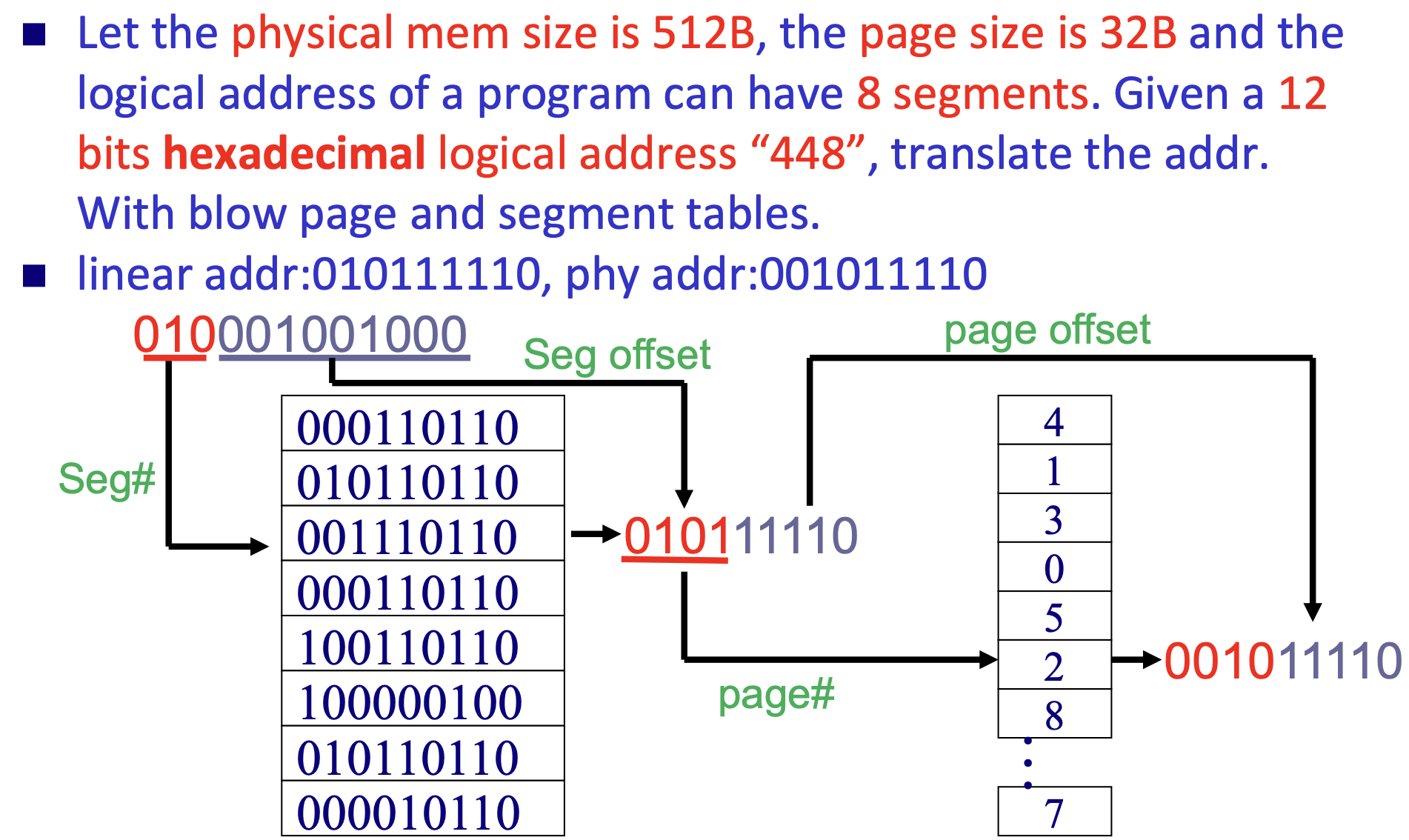

• CPU --logical address--> Segmentation --linear address--> Paging --physical address--> Memory
• Example: The Intel Pentium
  • logical address: (selector 16, offset 32)
    • selector: segment number 13, GDT/LDT 1, protection info 2
      • LDT: Local Descriptor Table ($2^{13}$ entries)
      • GDT: Global Descriptor Table ($2^{13}$ entries)
    • max # of segments per process: $2^{14}$
    • size of a segment: $\le 2^{32} = 4\text{GB}$
  • linear address: segment base address(output of segment descriptor) + offset = 32-bit linear address
  • take 32-bit linear address as paging logical address
    • 10 (p1) + 10 (p2) + 12 (d)
    • the last bit of p1 can be used as a page size flag
      • 0: 4KB page (normal 10 p2 + 12 d)
      • 1: 4MB page (directly use 22 d)
